Solid, five-stage centrifugal pump max.4.2bar and delivery rate v. 5400l / h, 550W
ENERGY-SAVING-OPTIMAL to INCREASE PRESSURE! Industrial quality!
including EU. Production of flow monitors with integrated dry-running protection function for automating the pump
Suction height up to 7m / 2.54 cm (1 inch) connections on the suction and pressure side
high quality stainless steel housing with extra wide mounting foot and 4 mounting points

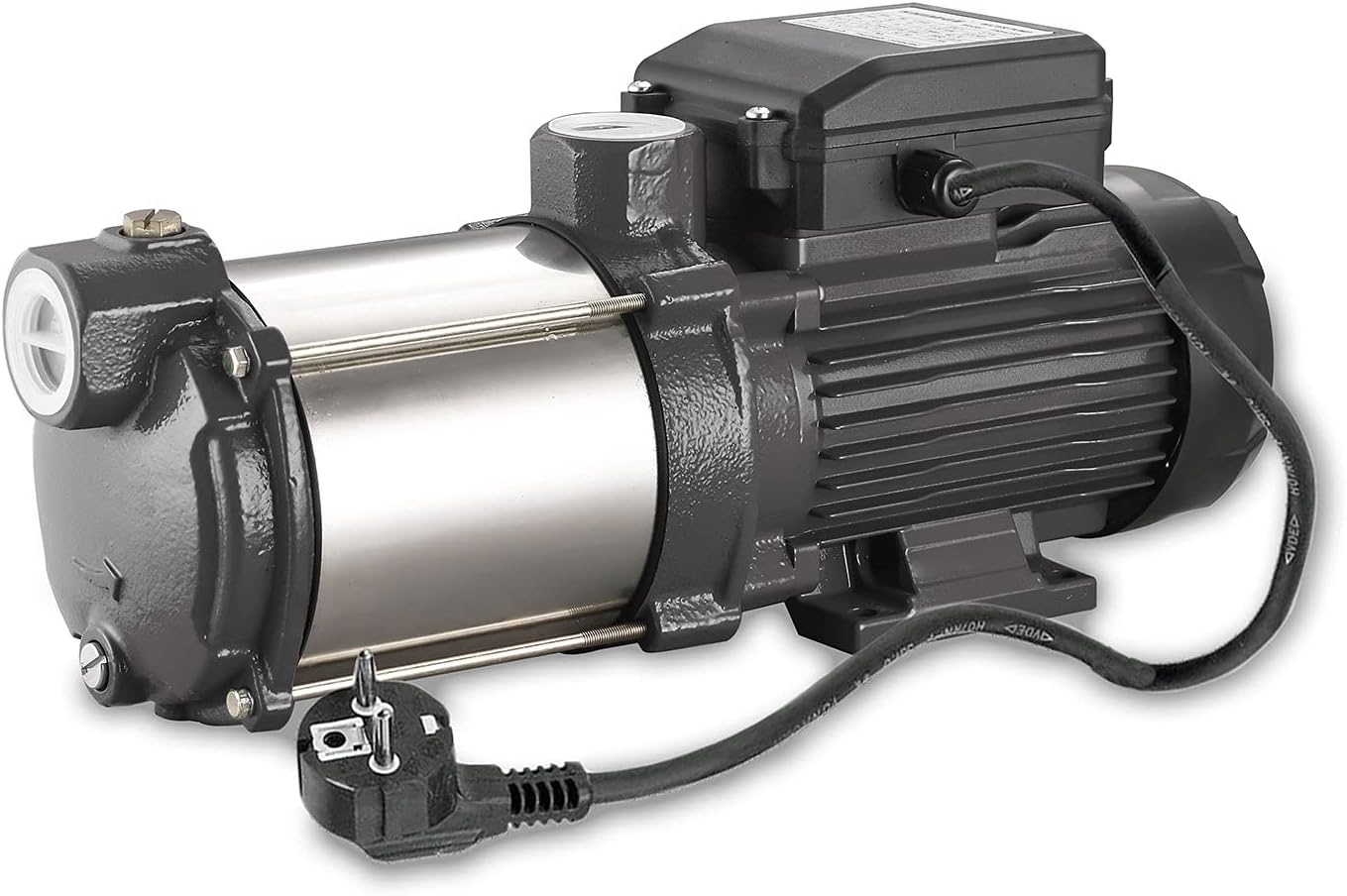

The INNO-TEC 550-9 domestic waterworks with FLUOMAC is a very reliable and solid centrifugal pump in terms of its design. It is versatile and ideal for using e.g. rainwater in the house or in the garden. It supplies its consumers with sufficient pressure. It is also ideal for watering lawns or flower beds in the garden or for connecting a lawn sprinkler.
Scope of delivery:

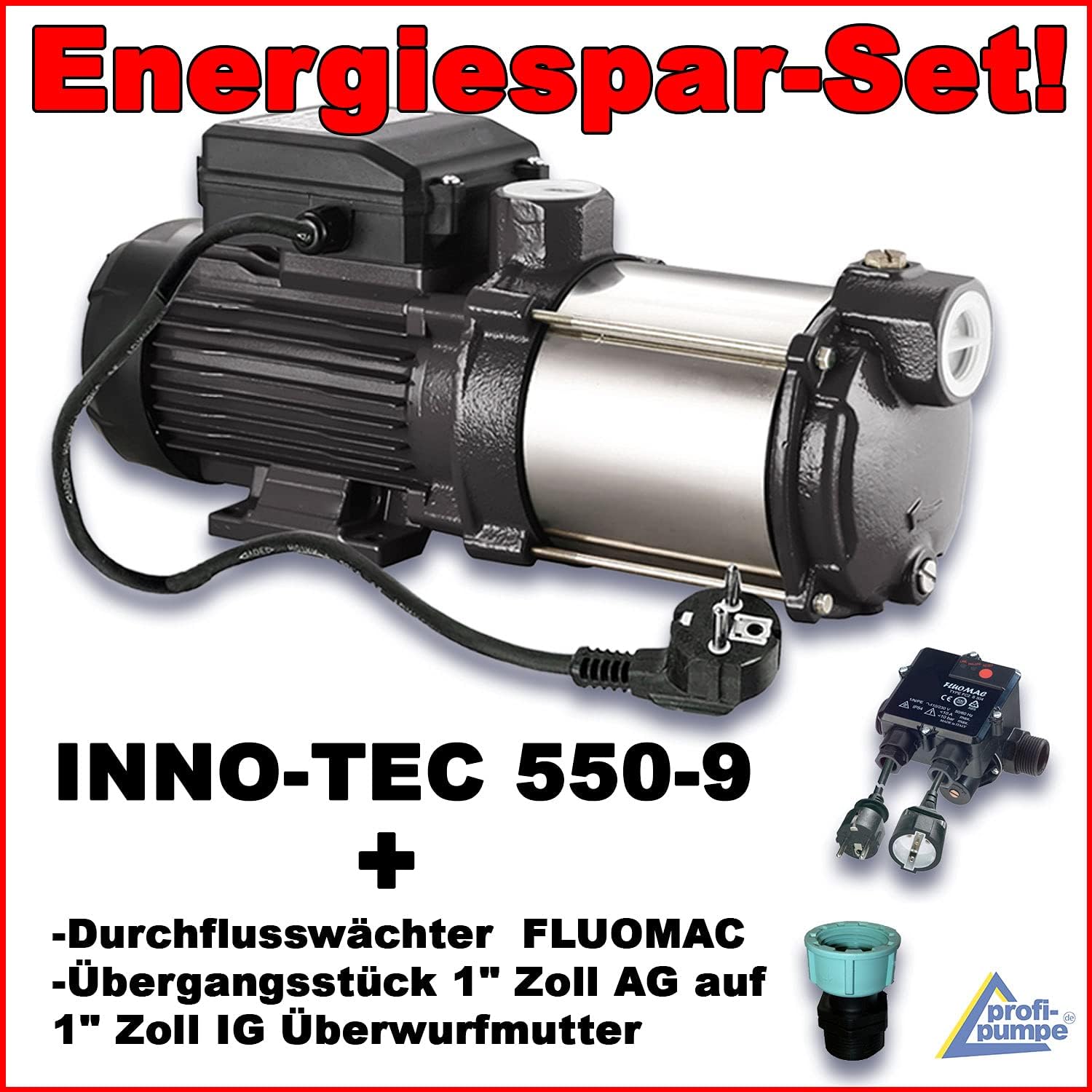

- 1 pc. INNO-TEC 550-9 centrifugal pump with FLUOMAC vk (vk
Technical specifications:

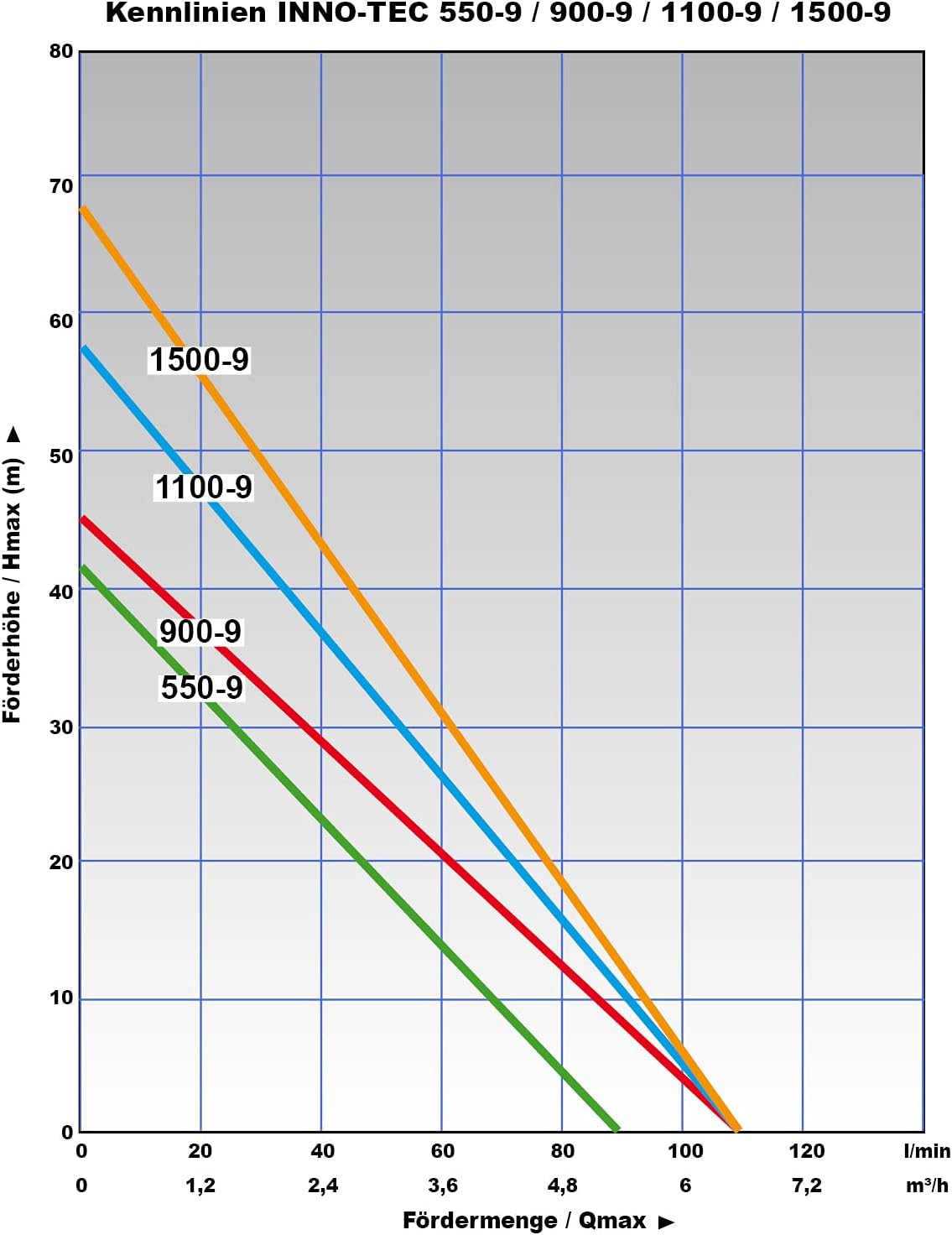

- Nominal power: 550 watts | max. delivery head (Hmax.) 42m | max.flow rate (Qmax.): 5400l / h | max.pressure: 4.2bar
- max.suction height: 7m (with check valve, 2.54 cm (1 inch) hose)
- Number of steps: 5 pcs.
- Dimensions: approx. 46cm / 22cm / 26cm | Weight: 12kg
- Voltage: 230V / 50Hz | Protection class IPX4
- Connection pressure side & suction side: 2.54cm (1 inch) brass IG
- Cable length: 1.2m (rubber cable) - Material housing & shaft: stainless steel

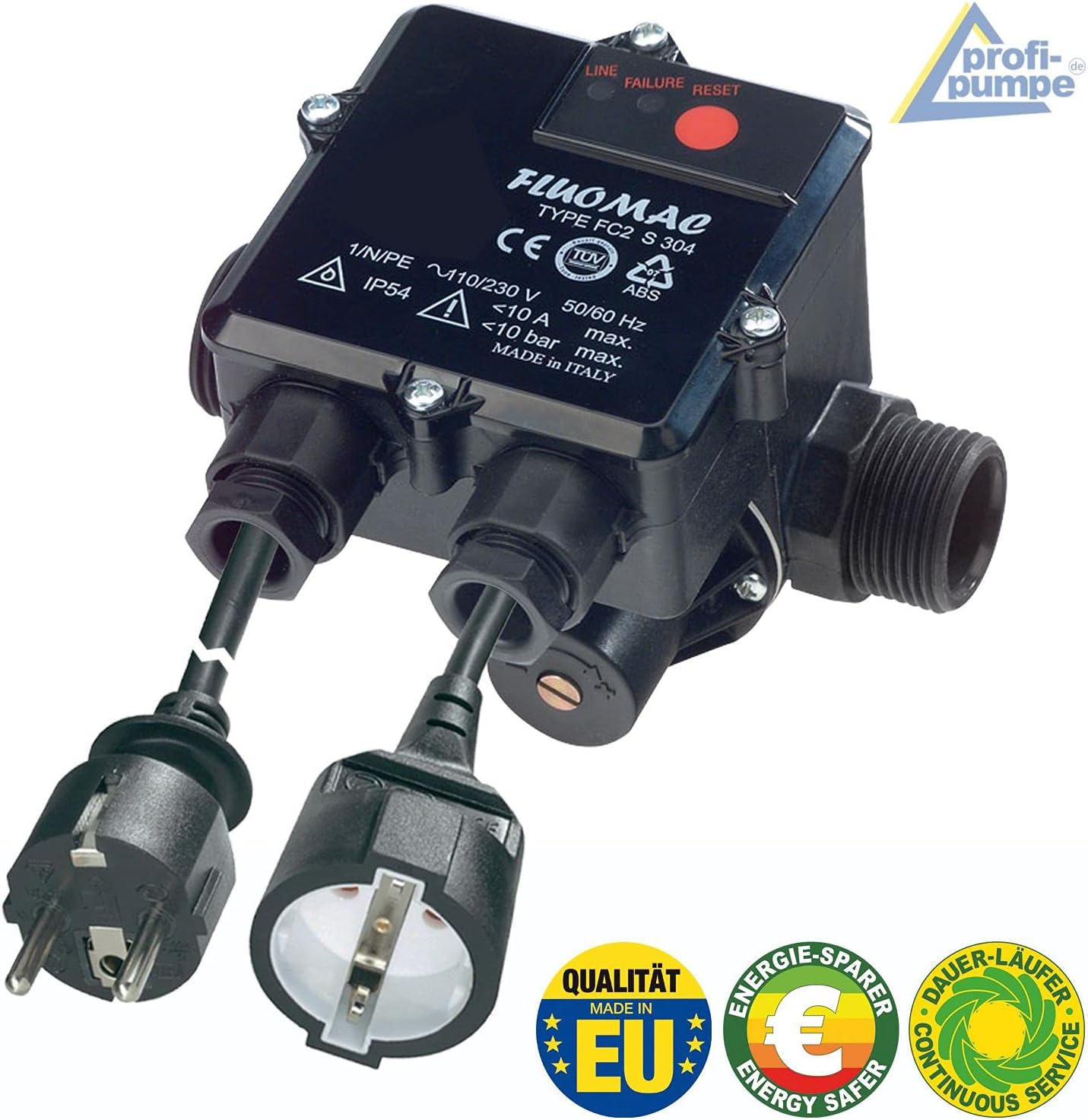

Technical data flow monitor:
- Switch-on pressure: 1.5bar (optimal for most applications)
- Max connected load: 1.1KW
- max.operating pressure: 7bar
- Volume flow, max .: 160l / min
