Solid, five-stage centrifugal pump max. 5.6 bar and flow rate of 5500 l/h, 1300 W
Energy-saving optimal for pressure increase. Industrial quality
Flow monitor with integrated dry run protection function
Suction height up to 8 m (with check valve) / 2.54 cm (1 inch) connections on suction and pressure side
High-quality stainless steel housing with extra wide mounting base and 4 mounting points

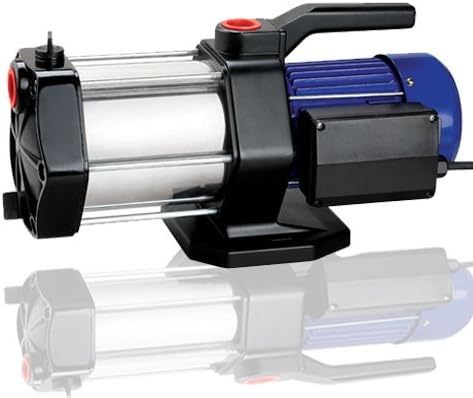

The Aqua Inno-Tec 1300 DWV domestic waterworks consists of a high-quality, five-stage clear water centrifugal pump with 1300 W and a pump control/flow monitor. This automatically controls the switching on and off of the pump. When a consumer is opened, the pump switches on and off again when closed. In case of a lack of water (low or no water flow), the flow monitor switches off the pump and protects it from dry running. The range of applications is very versatile. With this device, you can automatically control and regulate the entire service water supply in your home.
With the pressure gauge, you can monitor the switch-on pressure and the pressure in the system.
Package includes:
- 1 piece. Inno-Tec 1300 DW AC3 domestic water unit (wired).
Technical details:
- Rated power: 1300 watts, max. Discharge head (Hmax.) 56 m. Max. Flow rate (Qmax. ): 5500 l/h | max. Pressure: 5.6 bar.
- Max. Suction height: 8 m (with check valve, 2.54 cm (1 inch) hose).
- Number of steps: 5 pieces.
- (L x W x H): approx. 46 cm/22 cm/26 cm, weight: 16 kg.
- Voltage: 230V/50Hz | Protection class IPX4
- Connection pressure side and suction side: 2.54 cm (1 inch) brass female thread.
- Cable length: 1.2 m (rubber cable).
- With carry handle
- Material housing & shaft: stainless steel

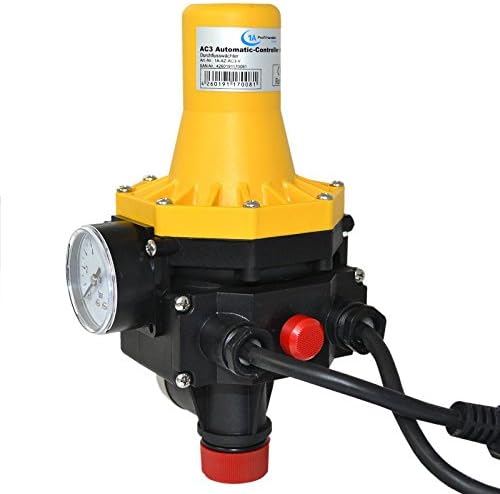

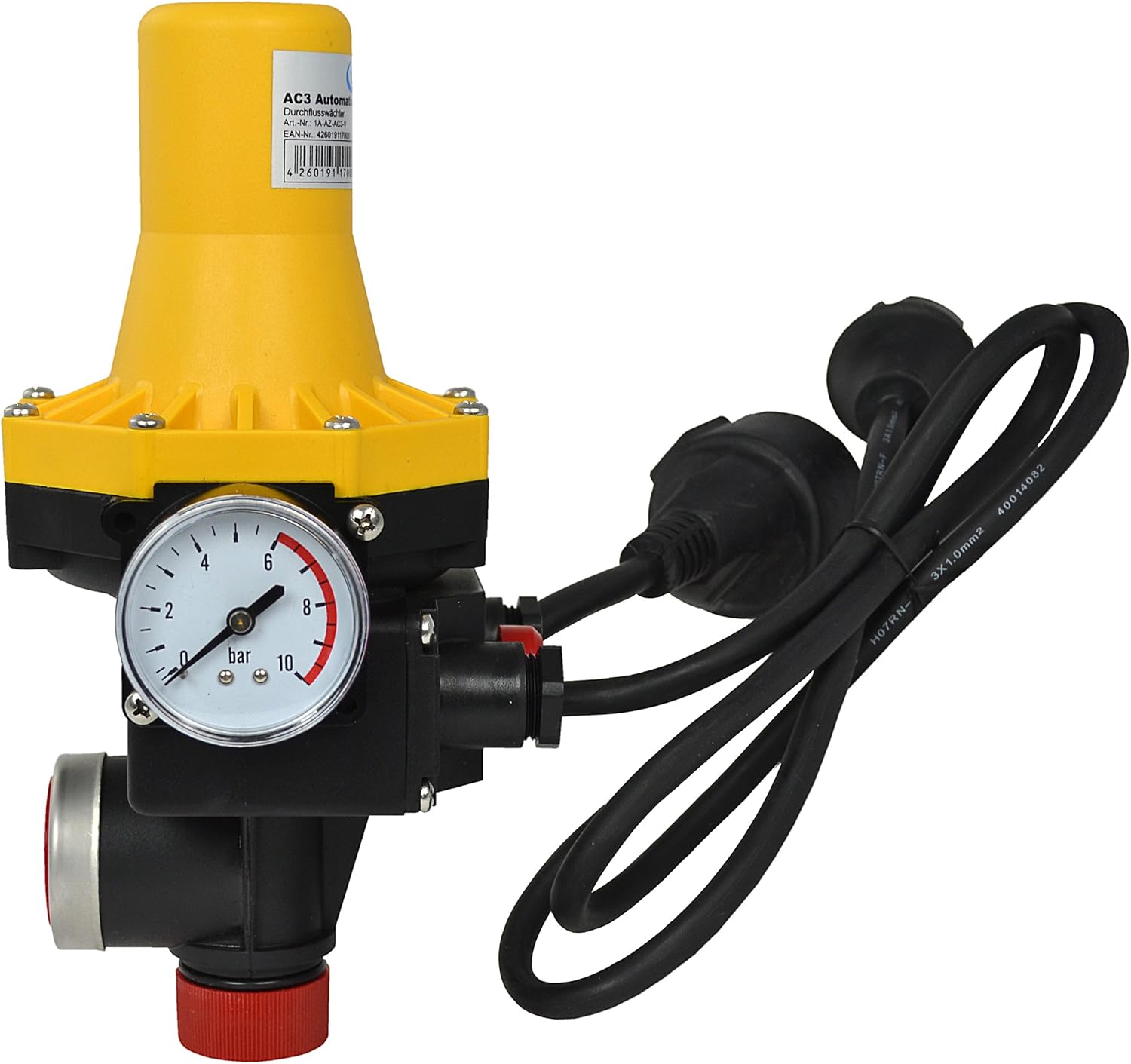

Technical data flow monitor:
- Switch-on pressure: 1.5 bar (ideal for most applications)
- Maximum connection power: 1.1 kW.
- Max. Operating pressure: 7 bar.
- Volume flow, max. : 160 l/min.
