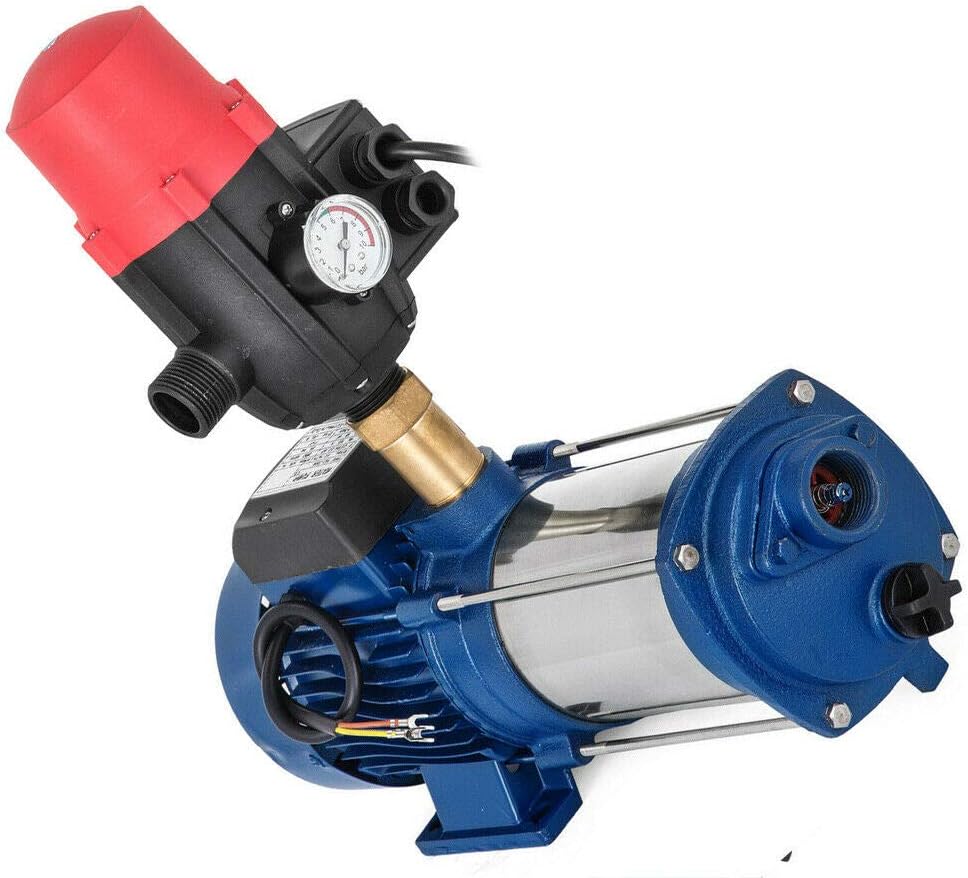

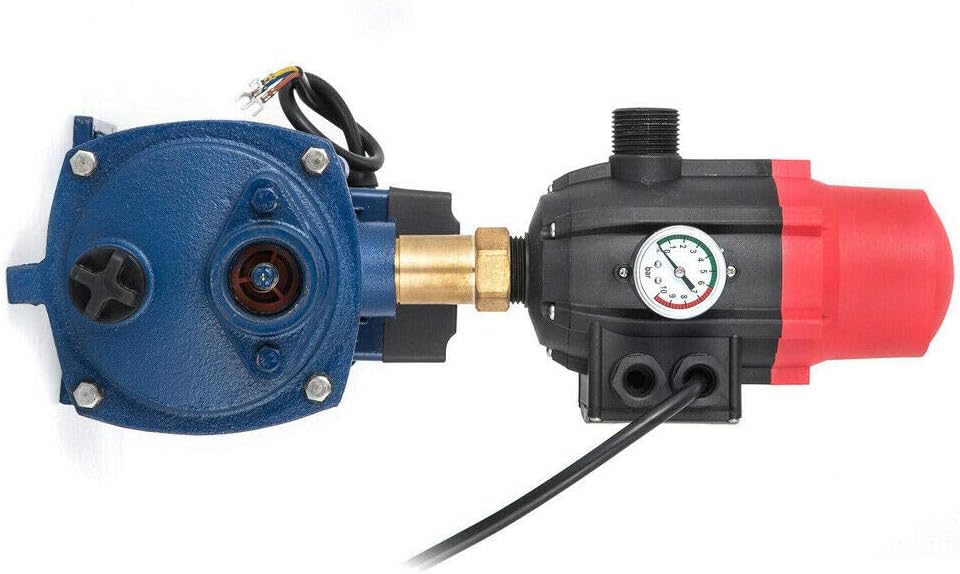

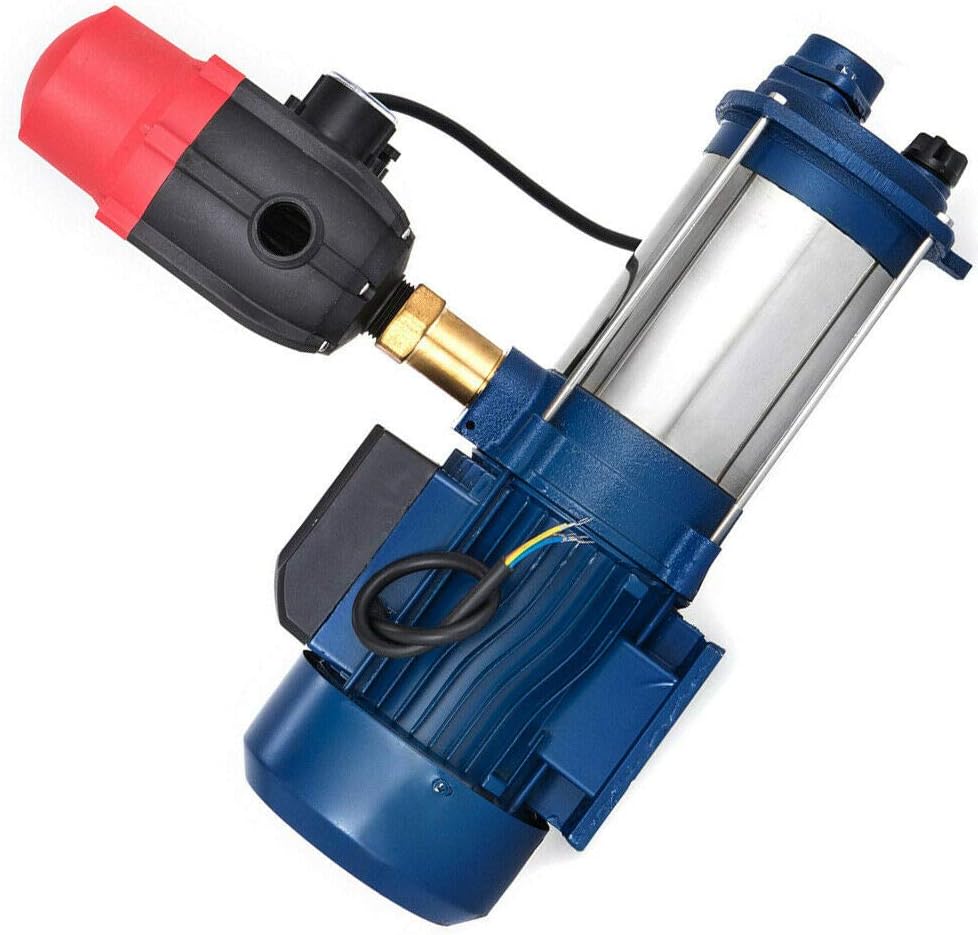

★ Listed is a 160 l / min 2200W blue centrifugal pump with a pressure switch. This high quality centrifugal pump is an excellent choice for improving water supply or garden irrigation.
★ It has a pressure switch that can regulate the pressure. The centrifugal pump has a measuring device that makes it easy to read the pressure on the measuring device.
★ The maximum flow rate is 160 l / min, which can carry a lot of water in a short time. Thanks to the powerful motor, the pump is very rugged. Thanks to the reinforced stainless steel construction, this durable jet pump is weatherproof.
★ Centrifugal pump with pressure switch for drinking water, rugged housing, junction box with switch and power connection, hose or pipe connection (top) thread, integrated thermal motor protection switch for pipes Elevation, water supply and drainage, an excellent choice for improving home water supply or garden irrigation.
★ Our water jet centrifugal pumps are often used to increase pipe and water supply. It can also be used for water supply and drainage in agriculture or gardens, hotels, cafeterias, factories, mines and skyscrapers.
Product specifications:
Product: Centrifugal pump
Material: stainless steel and cast iron
Power supply: socket type
Type: MC-2200
color: blue
Voltage: 230 V / 50 Hz
Power: 2200 W/3.0 HP
Speed: 2850 rpm
Maximum flow rate: 9.6 cubic meters / hour (160 l / min)
Maximum lift: 100 m (328 ft)
Connection between suction side and pressure side: 2.54 cm (1 inch)
Protection level: IP44
Packing size: 62*26*20cm
Total weight: 12.8kg
The package includes:
1 x centrifugal centrifugal pump with pressure switch
1 x product description
Note:
Please read the product description carefully before starting to install the pump! ! ! If possible, place the pump near the wellbore to maintain maximum flow. Make sure the suction height. Please provide a check valve for the suction line to ensure the water column is present. Fill the pump and suction line with water before starting, otherwise it may cause idling. The diameter of the suction pipe should be 1"-1 1/4" but not less than or greater than. Otherwise, the pump will not be able to provide the proper power or pressure.
